Offering accurate, brilliant color performance, the Cinema HD delivers up to 16.7 million colors across a wide gamut allowing you to see subtle nuances between colors from soft pastels to rich jewel tones. A wide viewing angle ensures uniform color from edge to edge.  ColorSync technology allows you to create custom profiles to maintain consistent color onscreen and in print. The result: You can confidently use this display in all your color-critical applications.

The Cinema HD features a single cable design with elegant breakout for the USB 2.0, FireWire 400 and a pure digital connection using the industry standard Digital Video Interface (DVI) interface. The DVI connection allows for a direct pure-digital connection.

Features:

Unrivaled display performance

• 30-inch (viewable) active-matrix liquid crystal display provides breathtaking image quality and vivid, richly saturated color.
• Support for 2560-by-1600 pixel resolution for display of high definition still and video imagery.
• Wide-format design for simultaneous display of two full pages of text and graphics.
• Industry standard DVI connector for direct attachment to Mac- and Windows-based desktops and notebooks
• Incredibly wide (170 degree) horizontal and vertical viewing angle for maximum visibility and color performance.
• Lightning-fast pixel response for full-motion digital video playback.
• Support for 16.7 million saturated colors, for use in all graphics-intensive applications.

Technical specifications

Screen size (diagonal viewable image size)

• Cinema HD Display: 30 inches (29.7-inch viewable)

Screen type

• Thin film transistor (TFT) active-matrix liquid crystal display (AMLCD)

Resolutions

• 2560 x 1600 pixels (optimum resolution)
• 2048 x 1280
• 1920 x 1200
• 1280 x 800
• 1024 x 640

Display colors (maximum)

• 16.7 million

Viewing angle (typical)

• 170° horizontal; 170° vertical

Brightness (typical)

• 30-inch Cinema HD Display: 400 cd/m2

Contrast ratio (typical)

• 700:1

Response time (typical)

• 16 ms

Pixel pitch

• 30-inch Cinema HD Display: 0.250 mm

Screen treatment

• Antiglare hardcoat

User controls (hardware and software)

• Display Power,
• System sleep, wake
• Brightness
• Monitor tilt

Connectors and cables
Cable

• DVI (Digital Visual Interface)
• FireWire 400
• USB 2.0
• DC power (24 V)

Connectors

• Two-port, self-powered USB 2.0 hub
• Two FireWire 400 ports
• Kensington security port

VESA mount adapter
Requires optional Cinema Display VESA Mount Adapter (M9649G/A)

• Compatible with VESA FDMI (MIS-D, 100, C) compliant mounting solutions

Electrical requirements

• Input voltage: 100-240 VAC 50-60Hz
• Maximum power when operating: 150W
• Energy saver mode: 3W or less

Environmental requirements

• Operating temperature: 50° to 95° F (10° to 35° C)
• Storage temperature: -40° to 116° F (-40° to 47° C)
• Operating humidity: 20% to 80% noncondensing
• Maximum operating altitude: 10,000 feet

Agency approvals

• FCC Part 15 Class B
• EN55022 Class B
• EN55024
• VCCI Class B
• AS/NZS 3548 Class B
• CNS 13438 Class B
• ICES-003 Class B
• ISO 13406 part 2
• MPR II
• IEC 60950
• UL 60950
• CSA 60950
• EN60950
• ENERGY STAR
• TCO '03

Size and weight

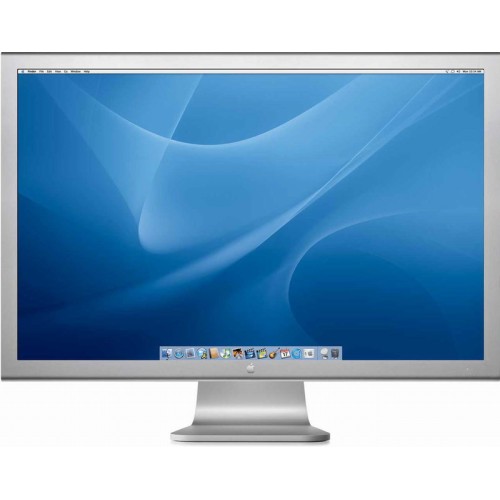

30-inch Apple Cinema HD Display

• Height: 21.3 inches (54.3 cm)
• Width: 27.2 inches (68.8 cm)
• Depth: 8.46 inches (21.5 cm)
• Weight: 27.5 pounds (12.5 kg)
